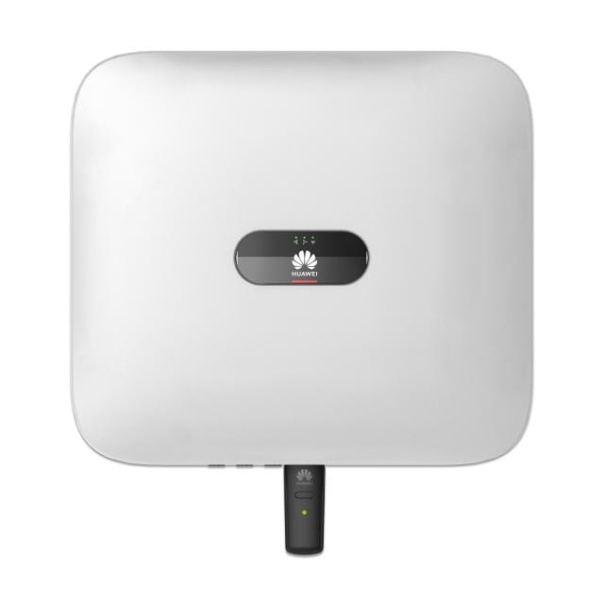

HUAWEI SUN2000-10KTL-M1 HC

The inverter HUAWEI SUN 2000-10KTL-M1 HC is a three-phase photovoltaic chain inverter, specially designed to convert direct current energy generated by photovoltaic panel module chains and deliver it to the electrical grid.

Its application includes roof-mounted residential installations connected to the grid and small ground-mounted photovoltaic installations, also connected to the grid. In a typical grid-connected installation consisting of photovoltaic chains, grid-connected inverters, alternating current switches, and energy distribution modules, the HUAWEI SUN2000 inverter plays a key role in efficiently converting and delivering electrical energy.

The high-current version is characterized by an allowable higher input current on the DC side.

Advantages of the HUAWEI SUN 2000-10KTL-M1 HC inverter:

Protection against electric arcs supported by AI - Up to 30% higher energy yield thanks to optimizers
"Plug & Play" battery interface
WLAN, Fast Ethernet, 4G communication support
Technical data of the HUAWEI SUN 2000-10KTL-M1 HC inverter:
Number of phases of the inverter: 3
Maximum efficiency: 98.6%
Recommended maximum PV power: 15,000 Wp
Maximum input voltage: 1100 V
Starting voltage: 200 V
Working voltage range of the PV input: 140 V - 980 V
Nominal input voltage: 600 V
Maximum working current on MPPT: 13.5 A
Maximum short-circuit current on MPPT: 19.5 A
Number of MPPTs: 2
Number of inputs: 1
Working voltage range of the DC: 600 - 980 Vdc
Maximum working current of the DC: 16.7 A
Maximum charging power: 10,000 W
Nominal output power: 10,000 W
Maximum apparent power: 11,000 VA
Nominal output voltage: 220 V AC / 380 V AC, 230 V AC / 400 V AC, 3W / N + PE
Maximum output current: 16.9 A
Weight (with mounting bracket): 17 kg
Dimensions (with mounting bracket): 525 x 470 x 146.5 mm
Degree of protection: IP65

The HUAWEI SUN 2000-10KTL-M1 HC inverter is an advanced solution that not only offers features facilitating operation and monitoring but also ensures quiet operation and a long-term 10-year warranty, making it a solid choice for photovoltaic installations.
